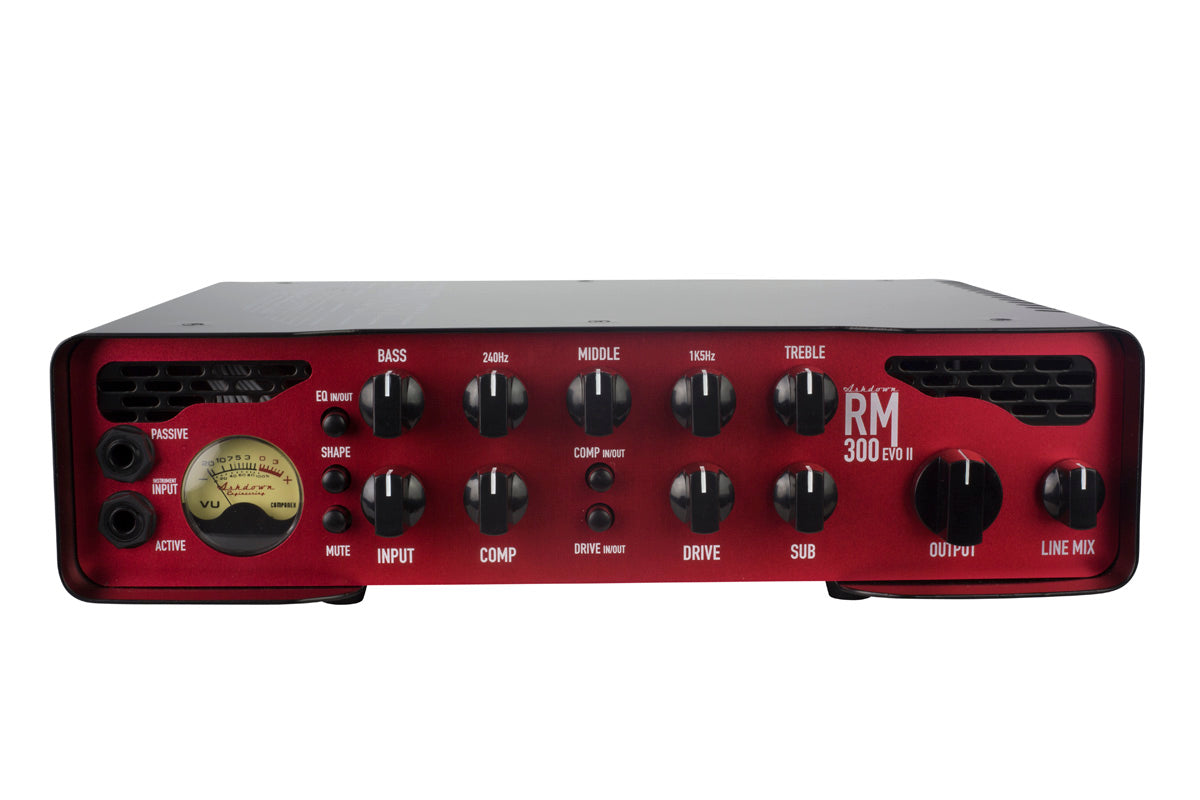

ashdown rm 300 evo ii head front
ashdown rm 300 evo ii head right
ashdown rm 300 evo ii head left
ashdown rm 300 evo ii head back

For those seeking Ashdown tone, power and reliability without the weight theĀ RM-300 EVO II is the solution. Perfect for practice, rehearsals and small to medium gigs.

Weighing in at just 2.1KG(4.6lbs) but boasting 300 watts of power, class leading quality and features. The Rootmaster EVO II range also now comes equipped with an on-board headphone preamp to allow for silent practice, which doubles up these gig-ready amplifiers as handy practice devices.Ā

The pre amp includes a passive and active input jack socket for use with high and low output instruments, this sets a clear signal path to the input control enabling you to fine tune your input level using the trademark Ashdown VU meter. With the signal at its optimal level, you then hit the rich features designed enhance your tone, such as the shape button, 5-band EQ and on-board compressor. The drive control, as always delivers a delectable valve emulated over-drive, whilst the sub harmonic controls add further fatness to your tone - both can be foot-switched via an FS 2 foot-switch (sold separately).

Rootmaster EVO II heads also features a handy mute button. Whatā€™s even cooler is when switched to mute, the trademark Ashdown Engineering VU meter changes from orange to cool blue ā€“ creating the perfect on stage mood lighting between sets.

Ā

Please Note:

Direct purchasesĀ NOTĀ available inĀ the United States

Find your local dealerĀ HERE

Bass The World Review

Gregor and Lars take you through the features and sounds of the Rootmaster 500 EVO II head.

SPECIFICATIONS

  • Power Output - 300 Watts
  • Power Requirements - 115-230 Volts
  • Speaker Outputs - 2 x Neutrik Speakon/Jack outputs
  • Frequency Response - -3dB @ 17Hz und 30KHz
  • High Instrument Input - Impedance 3.9m Ohms, input range 150mV
  • Low Instrument Input - Impedance 10k Ohms, input range 300mV - 40V p-p
  • Line Input - Impedance 22k Ohms, input level 0dBu nominal
  • DI Output - 600 Ohm balanced, Level 0dBu nominal
  • Impedance - Minimum 4 Ohms

  • Signal to Noise - Better than 80dB (EQ flat)
  • EQ - Bass +/-15dB @ 100Hz, Low Mid +/-15dB @ 220Hz, Middle +/-15dB @ 660Hz, Hi Mid +/-15dB @ 1.6kHz, Treble +/-15dB @ 7kHz shelving Deep +
  • Effects Send - Impedance 22k Ohm, Level 0dBu nominal
  • Effects Return - Impedance 22k Ohms, input Level 0dBu Nominal
  • Distortion - Less than 0.5% THD
  • H x W x D (mm) - 86 x 314 x 235
  • Weight (kg/lbs) - 2.1/4.6

Ashdown rm 300 evo ii head with red anodised alloy front panel
Red anodised alloy front panel
Ashdown have upgraded the ampā€™s front panel with a matt anodised alloy finish, replacing the previous polished stainless steel. This simple, yet observant modification makes reading your amp settings that bit easier when placed under bright stage lighting.

No more reflective surfaces.
ashdown rm 300 evo ii head with eq controls
Simple, powerful EQ
The Rootmaster EVO seriesā€™ pre amp now includes a passive and active input jack socket for use with high and low output instruments. The five- band rotary tone controls act with surgical precision to provide total control over your sound, while a shape switch instantly dials you in to a classic Ashdown tone setting, straight from the world-famous ABM.
RM 300 evo ii head one knob compressor
One-knob Compression
Instantly adding warmth and body to your tone, this simple to use, great sounding compressor delivers a powerful, even sound to make sure your bass is smooth as silk and will fill out any mix.
ashdown rm 300 evo ii head over drive and sub controls
Overdrive & Sub
With footswitchable flexibility, our tube-emulated overdrive can take your core bass sound and push it into warm overdrive through to distorted filth whenever you need to add extra grind and girth to your tone.

Bringing extra depth and definition to your bass parts, the Sub-Harmonic Generator lets you dial in a sub-octave and kick it in via footswitch whenever you need the extra depth for those super-heavy Godzilla moments.
ashdown rm 300 evo ii di outputs and Neutrik Jack and speakon sockets
Totally connected
If you want to use your favourite pedals or multi-effects, youā€™ll find send and return sockets on the back panel, along with a DI output for direct injection into the PA mixer or recording console and a Line Input (with front panel level control) so you can jam along with a backing track in rehearsal.

A pair of Neutrik Jack/Speakon sockets with a minimum 4 ohm load provides flexible partnering options with a dedicated range of Rootmaster EVO cabinets. The Rootmaster 300 EVO II can be used to power a single 8 ohm cabinet, a pair of 8 ohm cabinets or a single 4 ohm cabinet.
Ashdown rm 300 evo ii head headphone out socket
Headphone Output
The Rootmaster EVO II range now comes equipped with an on-board headphone preamp to allow for silent practice,which doubles up these gig-ready amplifiers as handy practice devices. The headphone preamp maximises the full sound potential of your headphones, so now your in ear sound can match the quality of your stage soundā€¦ given you have the correct (Meters Music) headphones, of course!
Shop For Meters Headphones

Resources

RM 300 EVO II User Manual
