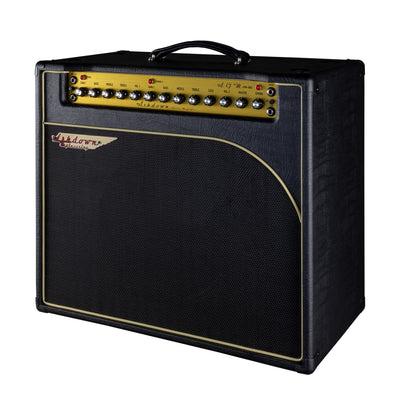

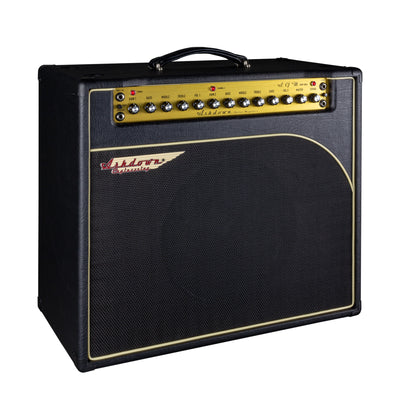

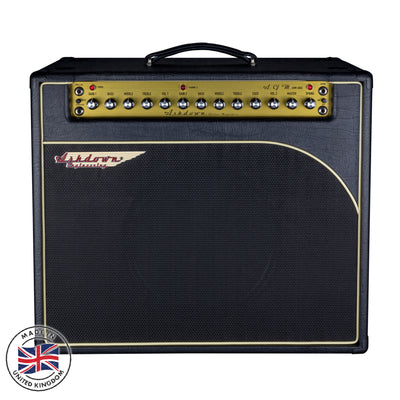

Ashdown Guitar Magnifier 45W 1 x 12" combo

Hand built in the UK Custom Shop using only the finest hand selected components the AGM-684 is a hugely versatile 1x12” combo fitted with a single Celestion Creamback G-12 M speaker.

At the heart of The AGM-684 lies a truly magical power section made up of 6 x EL84 power valves, running in Class A –AB 1 (cathode bias system). This feature allows guitarists to replace output valves (should the need arise) without having to call on a tech to re-bias the amplifier. Plug and play at it’s best giving you a great tone, gig after gig.

With 45 watts of smooth harmonically rich tone and six differing output power levels via Triode/pentode switching the 684's sweet spot is easy to find, whatever the gig. Pentode mode allows 45, 30 or 15 watt output and Triode mode gives 22, 15 and 8 watt output.

The 684 features two channels with independent 3 band EQ's providing clean, crunch and overdriven tones whilst a 3 spring genuine ‘Accutronics’ tank provides sumptuous valve driven reverb whenever required.

A valve driven and recovered FX loop allows for the player’s favourite modulation/time based FX pedals to run straight into the power amp without loss of quality. Whilst Humbucker and Single Coil inputs allow for perfect instrument matching – further optimising your tone even before you’ve turned your amplifier on.

The unique ‘Cascade’ control allows the player to fine tune the level of gain available to channel 2, providing more clean headroom to crunch tones or increasing the pre amp voltage for earlier saturation and overdriven tones.


Please Note:

Direct purchases NOT available in the United States

Find your local dealer HERE


  • Output Power - 45 watts
  • Valves - 4 x JJ ECC83 pre amp valves
  • Size (WxHxD) - 560 x 498 x 300
  • Weight - 16kg

Close up of the inputs, gain 1 and bass controls on the Ashdown AGM 684c
  • Hand built in UK Custom Shop
  • 45 watts from 6 x JJ EL84 valves
  • 4 x JJ ECC83 pre amp valves
  • Pentode/Triode switching for 7/15/30/45 watt modes
  • Footswitchable Valve driven genuine spring Reverb
  • Twin channels with independent EQ’s and Master Volumes
  • Celestion G12-M Creamback 12” speaker
  • Valve driven FX Loop
  • Cascade control for increasing gain available to the amp.

Close up of the celestion speakers used in the Ashdown AGM 684c

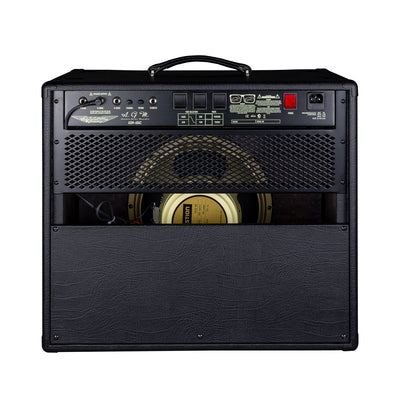

Close up of the rear tube selectors on the Ashdown AGM 684c
