a class-leading preamp and powerhouse
Immediately identifiable on stages around the world thanks to its glowing VU meter, the Ashdown ABM has been a firm favourite with professional gigging bass players for the best part of twenty years.
Now in its fifth incarnation, ABM EVO IV pairs class-leading preamp sophistication with uprated powerhouse performance and an all-new 9-band EQ - available in three head versions, two are rated at 600W and one at 1200W.

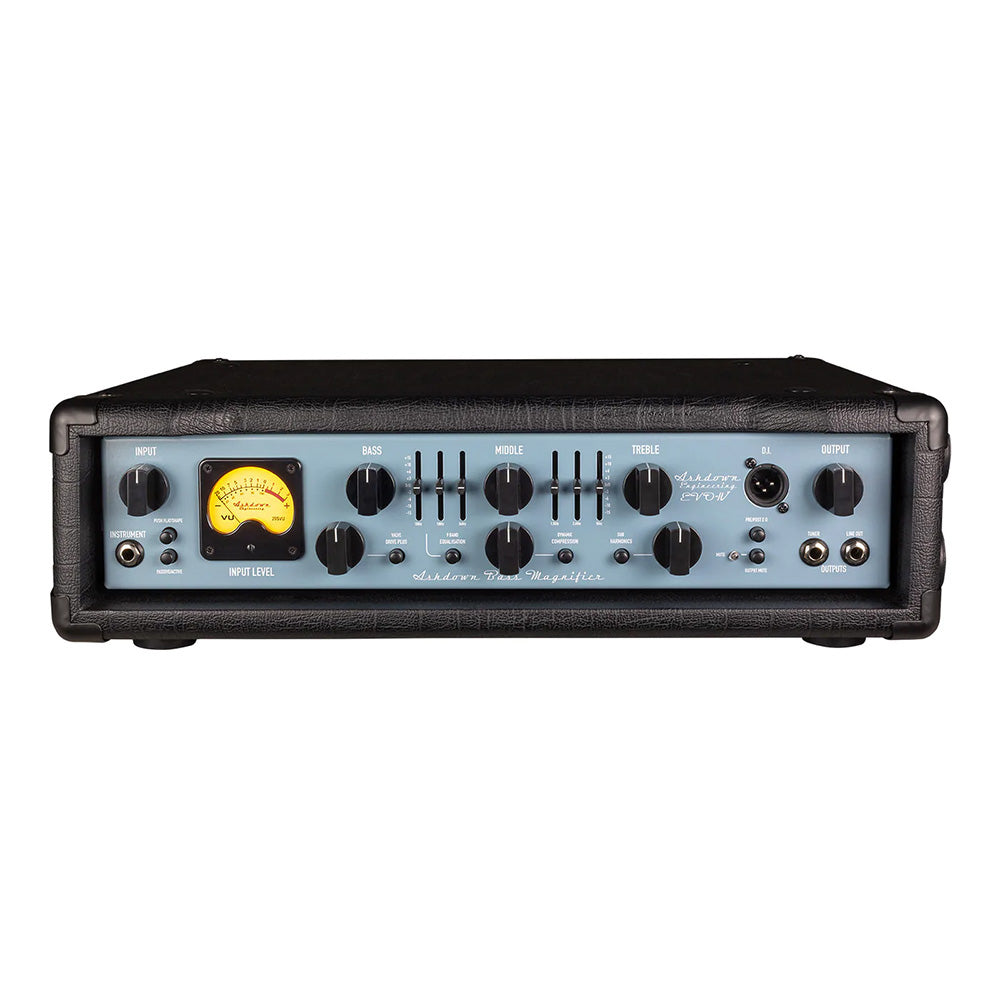

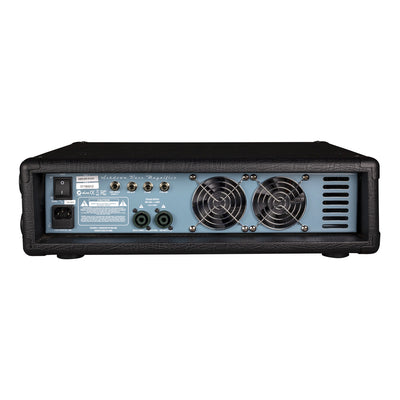

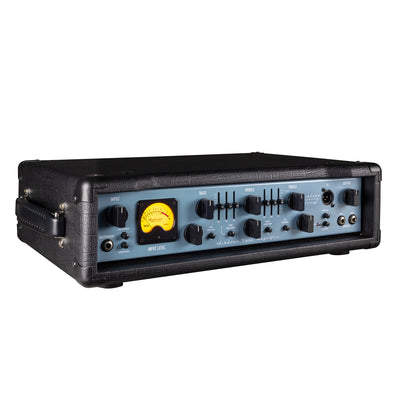

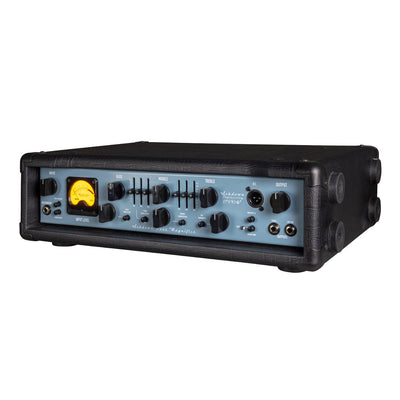

The ABM 600 EVO IV teams the ABM preamp with a gut-rumbling 600W power stage.
|Power Output||600 Watts|
|Power Requirement||115-230 Volts|
|Speaker Outputs||4 x Jack/Speakon outputs|
|Frequency Response||-3dB @ 17Hz und 30KHz|
|High Instrument Input||Impedance 3.9m Ohms, input range 150mV|
|Low Instrument Input||Impedance 10k Ohms, input range 300mV - 40V p-p|
|Line Input||Impedance 22k Ohms, input level 0dBu nominal|
|DI Output||600 Ohm balanced, Level 0dBu nominal|
|Tuner Output||Impedance 22k Ohms, Level 0dBu nominal|
|Impedance||Minimum 4 Ohms Per Side|
|Effects Send||Impedance 22k Ohm, Level 0dBu nominal|
|Effects Return||Impedance 22k Ohms, Input Level 0dBu Nominal|
|Output Tubes||1 x 12AX7|
|H x W x D (mm)||135 x 474 x 320|
5 Year Warranty
We're so confident in our amplifiers, we offer a 5 year warranty on all new products.
Built for the road
Perfect for gigging bass players, our products are built to last.
