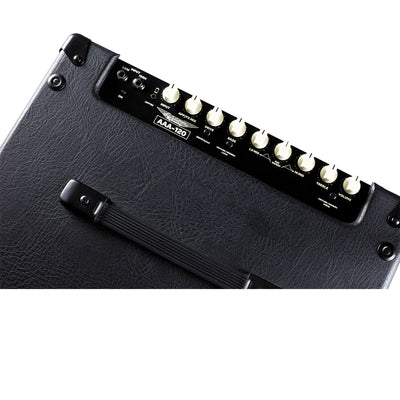

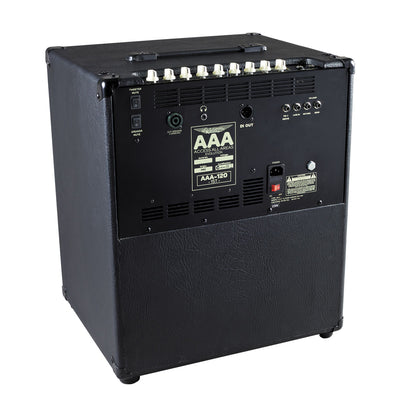

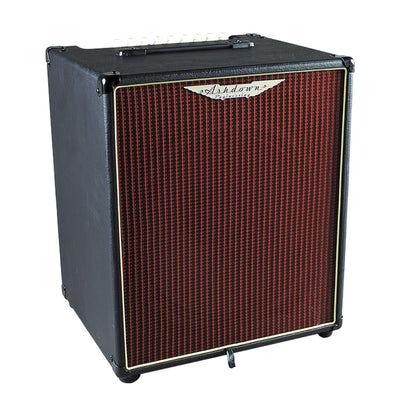

AAA EVO 120 Demo
Dave Hollingworth takes the all NEW Ashdown AAA-EVO range through its paces
Specifications
Power Output | 120 Watts |
Speaker Configuration | 1 x 15” + HF Tweeter |
Speaker Outputs | 1/4" Jack |
Frequency Response | -3db at 22hz and 25khz |
High Instrument Input | Impedance - 3.9M Ohm Input range 150mv to 20v p - p |
Low Instrument Input | Impedance - 10k Ohm Input range 300mv to 40v p - p |
Line Input | Yes with mix control |
DI Output | Balanced XLR |
Impedance | 8 Ohm. Minimum 4 Ohm when extension cab added |
EQ | Bass, Hi-Mid, Lo-Mid, Treble & Variable Mid Sweep |
Effects Send | Yes |
Effects Return | Yes |
H x W x D (mm) | 520 x 475 x 340 |
Weight (kg) | 17 |
Resources
AAA 120 User Manual
