SPECIFICATION
- Power Output - 300 Watts
- Power Requirements - 115-230 Volts
- Speaker Outputs - 2 x Jack outputs
- Frequency Response - -3dB @ 22Hz and 25KHz
- High Instrument Input - Impedance 3.9m Ohms, input range 150mV - 20 p-p
- Low Instrument Input - Impedance 1M Ohms, input range 150mV - 10V p-p
- Line Input - Impedance 10k Ohms, input range 300mV - 40V p-p
- DI Output - 600 Ohm balanced, Level -20dBu nominal
- Impedance - Minimum 4 Ohms
- Signal to noise- Better than 80dB (EQ flat)
- EQ - Bass +/-15dB @ 100Hz, Lo Mid +/-15dB @ 220Hz, Middle +/-15dB @ 660Hz, Hi Mid +/-15dB @ 1.6kHz, Treble +/-15dB @ 7kHz shelving
- Effects Send - Impedance 22k Ohm, Level 0dBu nominal
- Effects Return - Impedance 22k Ohms, Input Level 0dBu Nominal
- Distortion - Less than 0.5% THD
- H x W x D (mm) - 89 x 220 x 209
- Weight (kg) - 1.8

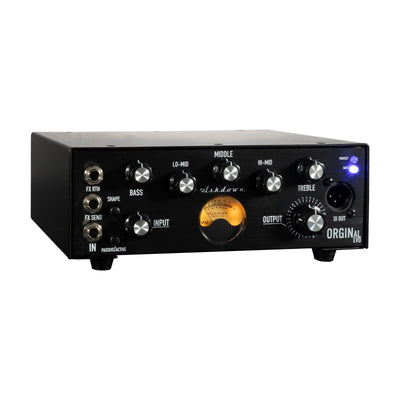

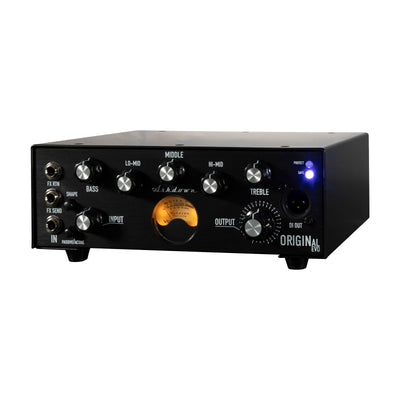

With a power output of 300 Watts, the OriginAL EVO is primed to deliver robust and authoritative bass tones, ensuring your presence is felt on stage and in the studio. However, the standout feature of this compact amp head is its unwavering commitment to simplicity and tonal brilliance.

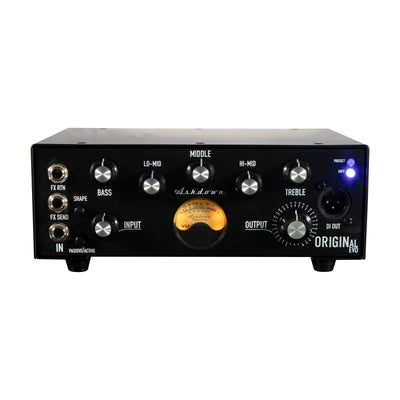

The 5-band EQ provides precise control over bass, middle, and treble frequencies, allowing you to sculpt your sound with unparalleled precision. Dedicated hi-mid and lo-mid knobs further enhance your ability to fine-tune your tone, ensuring that your bass playing sounds exactly as you imagine it.
The 5-band EQ provides precise control over bass, middle, and treble frequencies, allowing you to sculpt your sound with unparalleled precision. Dedicated hi-mid and lo-mid knobs further enhance your ability to fine-tune your tone, ensuring that your bass playing sounds exactly as you imagine it.
In addition to its tonal versatility, the OriginAL EVO
incorporates modern conveniences that make it a musician's best friend. The front-facing effects loop and XLR DI output streamline your sound management, providing you with the tools you need for a professional performance.

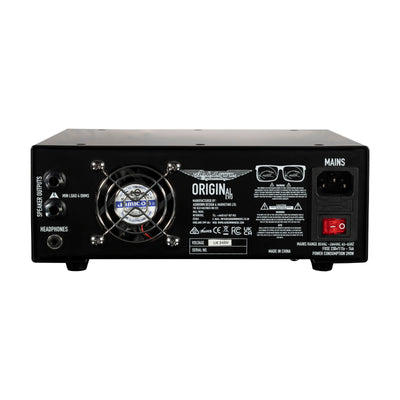

The rear panel features a headphone output for silent practice sessions and multiple speaker outputs, offering the flexibility to adapt your rig configuration to any musical situation.
incorporates modern conveniences that make it a musician's best friend. The front-facing effects loop and XLR DI output streamline your sound management, providing you with the tools you need for a professional performance.
The rear panel features a headphone output for silent practice sessions and multiple speaker outputs, offering the flexibility to adapt your rig configuration to any musical situation.
What sets the OriginAL EVO apart, aside from its stellar
performance, is its rugged design. Built to withstand the rigors of the road, it features scuff-proof paint and a steel and alloy chassis that can endure the harshest touring conditions.
The amplifier comes with a 5-year warranty, providing peace of mind for musicians on the go. Moreover, it boasts auto-protect voltage for global touring musicians and features an adaptive temperature-controlled fan, making it equally suitable for studio and stage use.
performance, is its rugged design. Built to withstand the rigors of the road, it features scuff-proof paint and a steel and alloy chassis that can endure the harshest touring conditions.
The amplifier comes with a 5-year warranty, providing peace of mind for musicians on the go. Moreover, it boasts auto-protect voltage for global touring musicians and features an adaptive temperature-controlled fan, making it equally suitable for studio and stage use.
Resources
ORIGINAL EVO User Manual
