SPECIFICATIONS
- Power Output - 750 Watts
- Power Requirement - 115-230 Volts

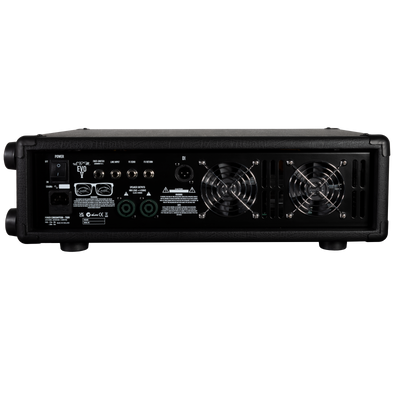

- Speaker Outputs - 2 x Jack/Speakon outputs
- Frequency Response - -3dB @ 17Hz und 30KHz
- High Instrument Input - Impedance 3.9m Ohms, input range 150MV
- Low Instrument Input - Impedance 10k Ohms, input range 300mV - 40V p-p
- Line Input - Impedance 22k Ohms, input level 0dBu nominal
- DI Output - 600 Ohm balanced, Level 0dBu nominal
- Tuner Output - Impedance 22k Ohms, Level 0dBu nominal
- Impedance - Minimum 4 Ohms
- Effects Send - Impedance 22k Ohm, Level 0dBu nominal
- Effects Return - Impedance 22k Ohms, Input level 0dBu nominal
- Pre Amp Tubes - 1 x 12AX7
- H x W x D (mm) - 155 x 489 x 336
- Weight (kg) - 13

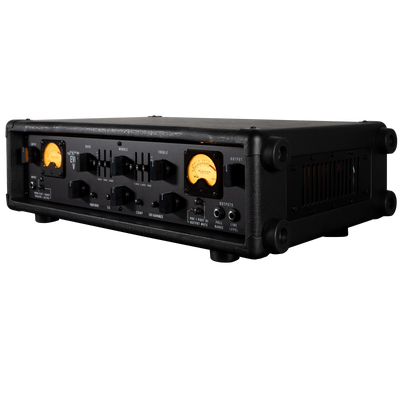

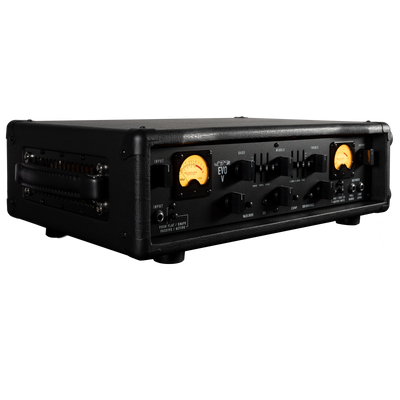

ABM EVO V

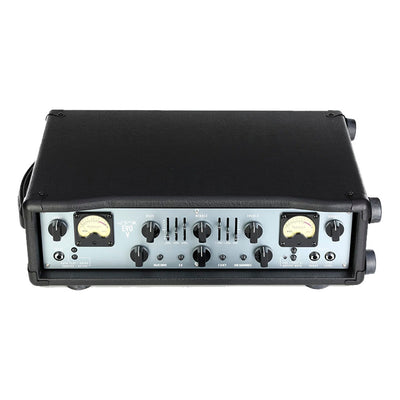

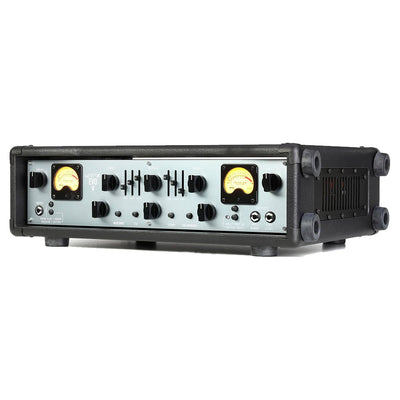

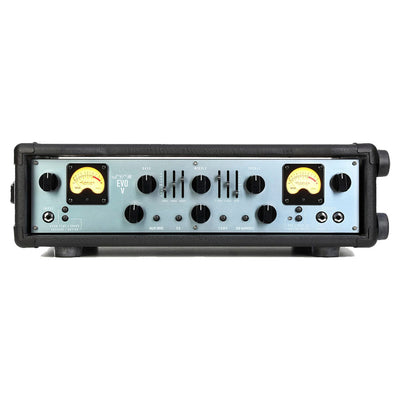

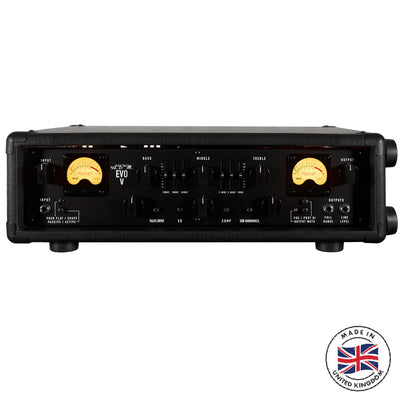

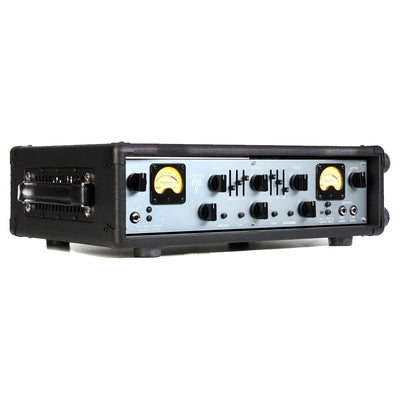

Traditionally sporting an ice-blue front panel, the ABM EVO V looks very different, moving to an all-black design that acknowledges the trend towards a more anonymous backline, although the trademark Ashdown illuminated VU meter remains very much in evidence. Indeed, the EVO V is the first ABM to feature VU meters for both input and output signals.
Behind the Tone
All the much-loved ABM features remain in evidence including 9 band EQ, 12AX7-powered Valve Drive, on-board compressor, and sub-harmonic control, with the UK-built EVO V adding mains voltage switching, temperature controlled low noise cooling and a transformer-isolated DI output.
All about the Power

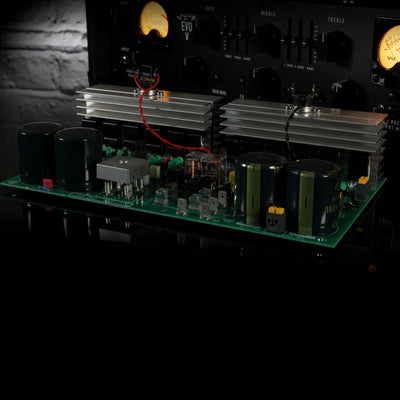

Under the hood, it’s all about power and headroom. A new 750-Watt output section is the most dynamic ever used in an ABM, gifting the amplifier with stunning power and response.
SPECIFICATIONS:
Power Output | 750 Watts |
Power Requirement | 115-230 Volts |
Speaker Outputs | 2 x Jack/Speakon outputs |
Frequency Response | -3dB @ 17Hz und 30KHz |
High Instrument Input | Impedance 3.9m Ohms, input range 150mV |
Low Instrument Input | Impedance 10k Ohms, input range 300mV - 40V p-p |
Line Input | Impedance 22k Ohms, input level 0dBu nominal |
DI Output | 600 Ohm balanced, Level 0dBu nominal |
Tuner Output | Impedance 22k Ohms, Level 0dBu nominal |
Impedance | Minimum 4 Ohms |
Effects Send | Impedance 22k Ohm, Level 0dBu nominal |
Effects Return | Impedance 22k Ohms, Input Level 0dBu Nominal |
Pre Amp Tubes | 1 x 12AX7 |
H x W x D (mm) | 155 x 489 x 336 |
Weight (kg) | 13kg |
